Collins Arch

Click an image to view larger version.


Height: Architectural 148 m / 486 ft
Height: To Tip 148 m / 486 ft
Floors Above Ground 42
Tower GFA 49,000 m² / 527,432 ft²
# of Apartments 202
# of Hotel Rooms 294


Official Name Collins Arch
Other Names Pantscraper, 433-455 Collins Street, 447 Collins Street
Structure Type Building
Status Completed
Country Australia
City Melbourne
Street Address & Map 433-455 Collins Street
Building Function residential / hotel / office
Structural Material concrete
Proposed 2014
Construction Start 2016
Completion 2020

Companies Involved

Owner/Developer Cbus Property
Design Woods Bagot; SHoP Architects
Structural Engineer
Design 4D Workshop
MEP Engineer
Design Norman Disney & Young; WSP
Project Manager Duo Projects
Main Contractor Multiplex
Other Consultant
Façade AECOM
• Interiors Hachem
• Landscape Oculus
• Quantity Surveyor Rider Levett Bucknall
Material Supplier
• Elevator KONE

About Collins Arch

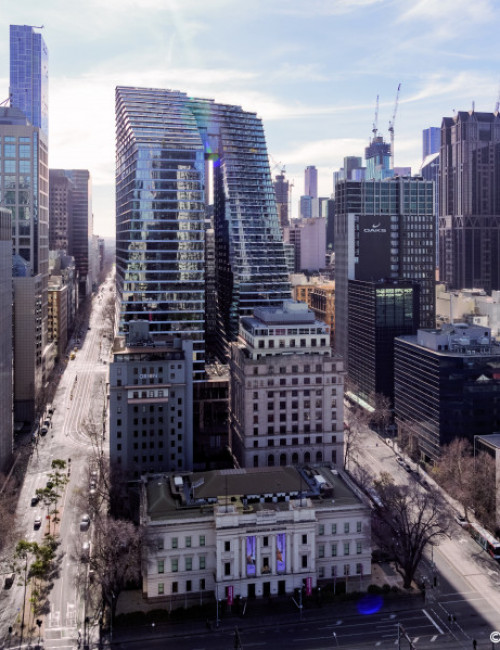

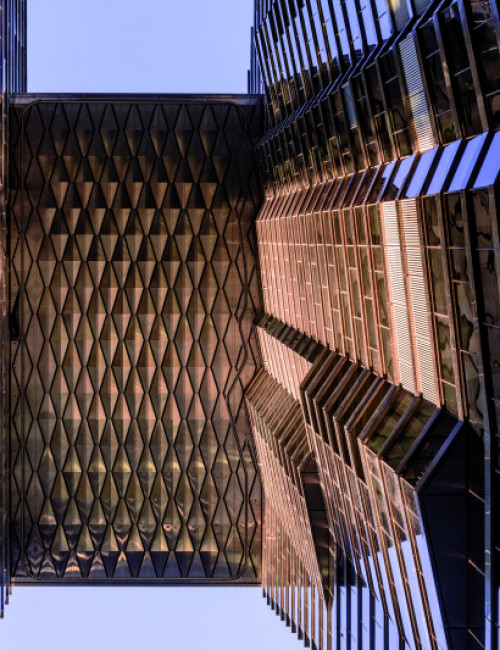

Designed in response to planning regulations seeking to limit shadows cast upon the Yarra River to the south, Collins Arch occupies a full 6,000 square meter city block in the center of Melbourne’s Central Business District. Composed as two buildings with linked floor plates flanking a large open void, the project had been planned as a mixed use concept, taking advantage of the central location which offers amenities and accessibility for a multitude of building functions. Within Collins Arch is 50,000 square meters of office space, a five-star hotel, retail, restaurants, over 200 luxury residential apartments and 2,000 square meters of civic space.

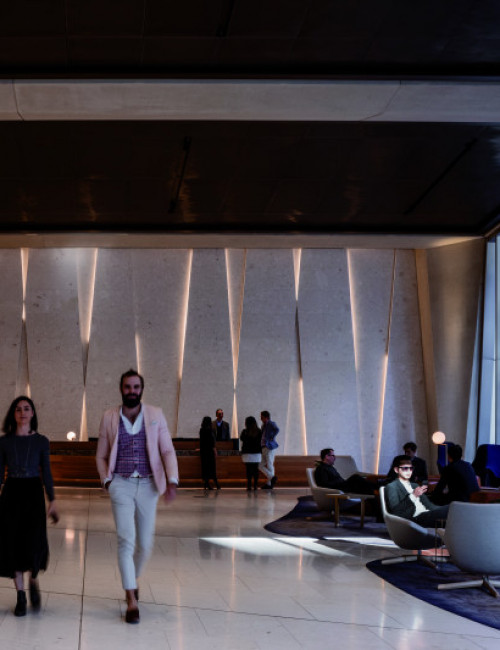

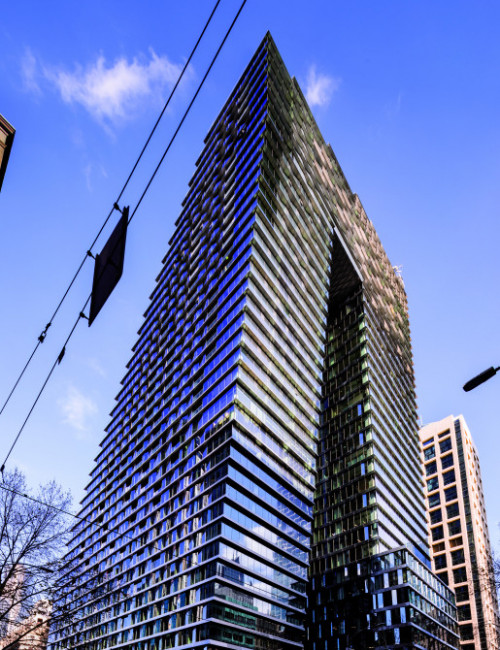

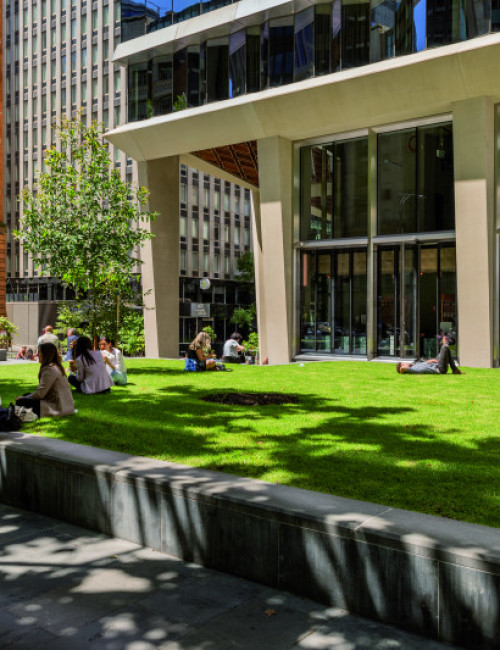

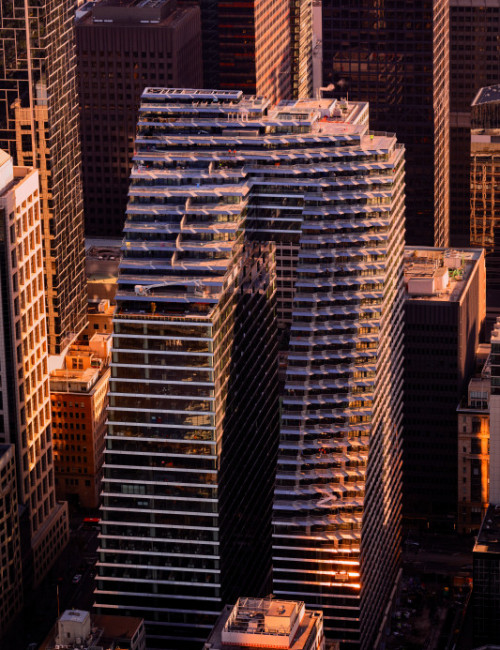

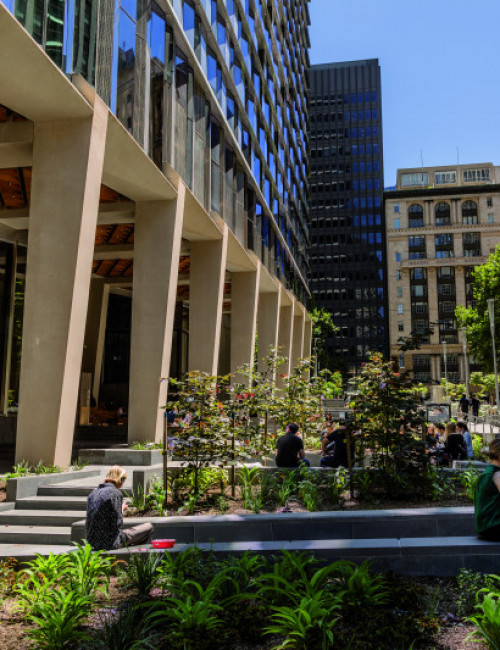

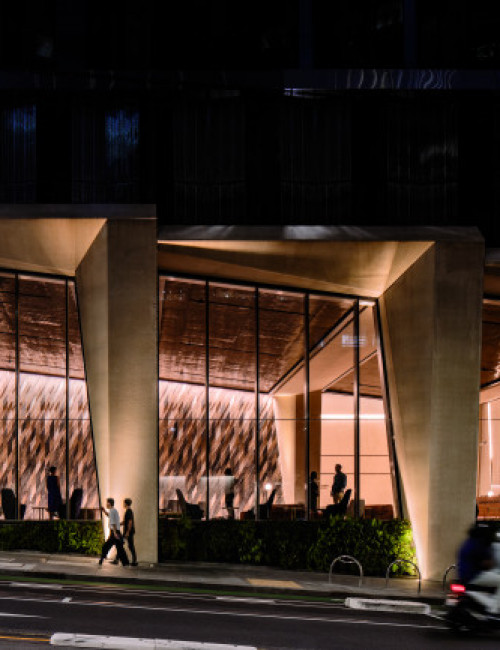

The building façade composition has an emphasis on articulation and texture, breaking down the scale of the building as it meets the street. The residential units of the upper floors feature a series of setbacks, providing occupants with outdoor terraces as the upper floors tapper towards the skybridge of connecting floor plates containing resident amenities. The base of the building was arranged around outdoor public space with focus on enhancing central Melbourne’s active streetscapes.
